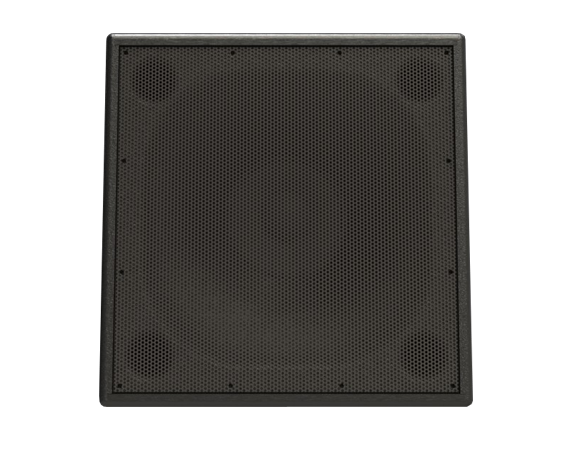

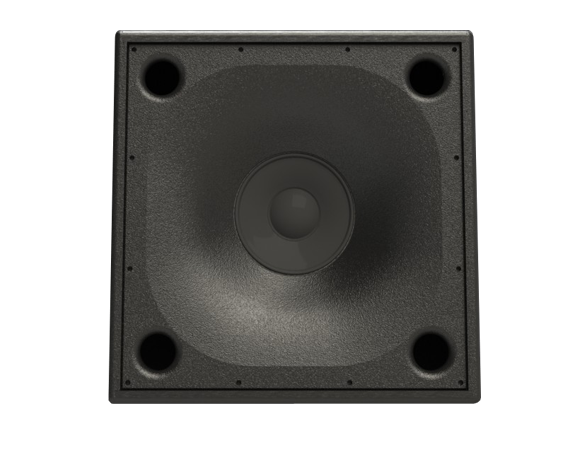

The SM100 is a two-way full range Synergy Horn™ loudspeaker that flawlessly delivers 100 degree dispersion

It is an excellent choice for distributed systems due to its superior pattern control, frequency response and overall fidelity. The pre-installed 1 3/8" pole cup for tripods makes the SM100 a great choice for portable systems.

Wide dispersion with high fidelity


  • coverage Pattern
    110˚ conical
  • operating
    frequency range
    70 Hz- 20 kHz +/- 3dB
    50 Hz - 24 kHz - 10dB
  • continuous output
    120 dBSPL
  • peak output
    126 dB SPL
  • sensitivity
    95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    single 8" coaxial
  • dimensions
    20.5 x 20.5 x 9 inches
  • weight
    45 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    300W continuous, 600W program
