The SH69

An Arrayable 60 X 90 full range box available in touring and install versions

sh69 header image

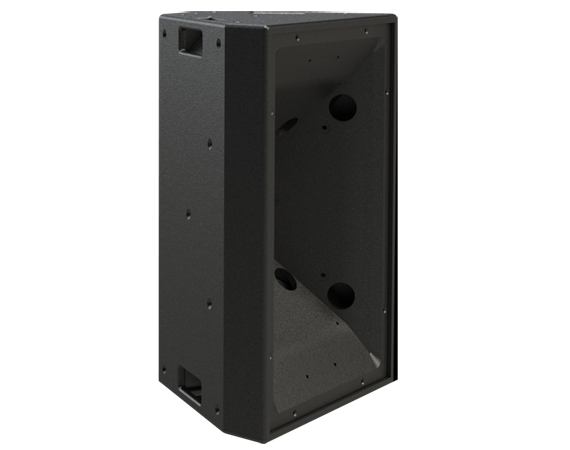

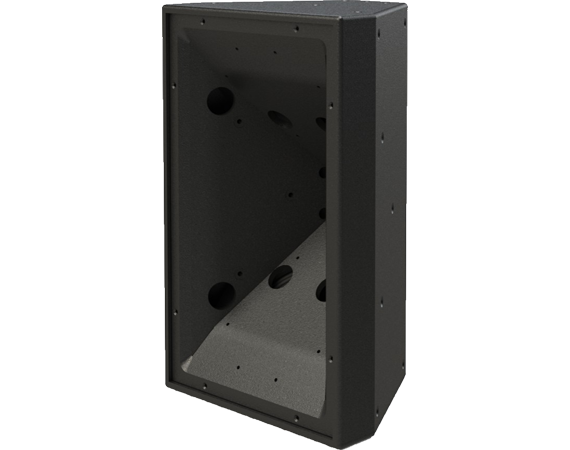

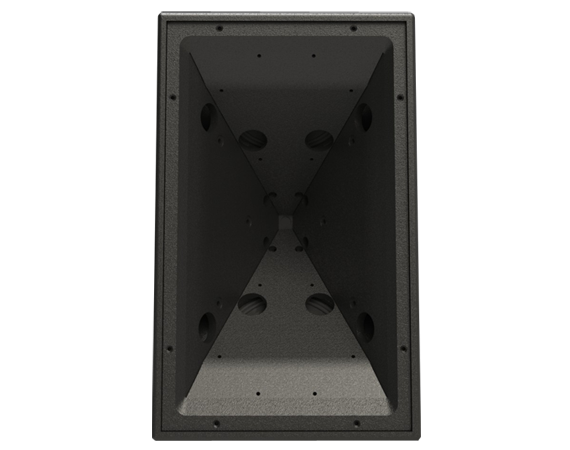

The SH69 is a very flexible design, a building block for seamless arrays

This is true full range performer in an overall compact and relatively light weight design. A single box houses two 12" woofers, six 4" midrange and a 1" high frequency driver

Build an array with SH69s. You wont hear the seams


  • coverage Pattern
    60˚ horizontal x 90˚ vertical
  • operating
    frequency range
    55 Hz - 18 kHz
    33 Hz- 24 kHz - 10dB
  • continuous output
    126 dB SPL
  • peak output
    132 dB SPL
  • sensitivity
    99 dBSPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    two 12" long excursion woofers
    six 4" Mid Range
    one 1" High Freq.
  • dimensions
    34 x 21 x 17 inches
  • weight
    116 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1000W continuous 2000W program
