The SM100F

The workhorse SM100 coupled to a single 15

sm100f header image

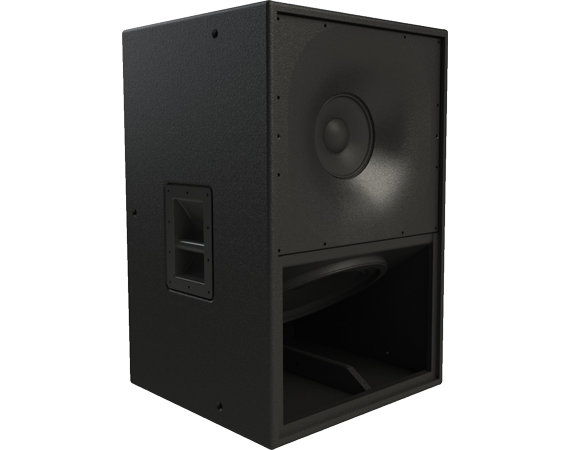

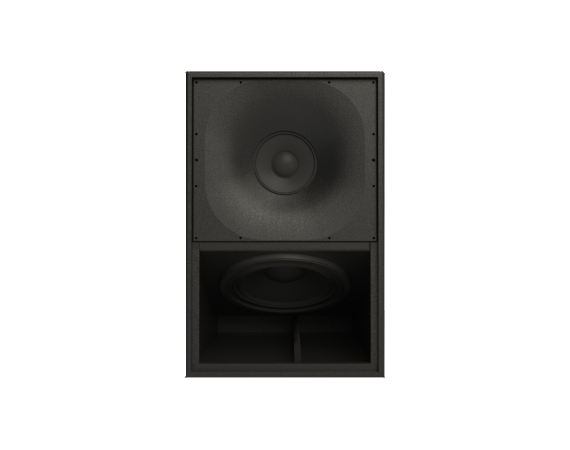

SM100F is an incredibly powerful broadband product in a very small package. One SM100F per side, with or without subwoofers, will do an amazing job of covering a substantial seating area. The touring version can easily be transported and set up by a one man crew.

Incredible Punch in a very compact enclosure


  • coverage Pattern
    110° conical
  • operating
    frequency range
    47 Hz - 18 kHz +/- 3 dB
    42 Hz – 19 kHz -10 dB
  • continuous output
    128 dBSPL
  • peak output
    134 dBSPL
  • sensitivity
    98 dBSPL (Measured as 2.83V input, 1Meter whole space)
  • driver complement
    Low Freq: one 15”
    High Freq: one 8” coaxial
  • dimensions
    33.5 x 20.5 x 19.0 inches
  • weight
    122 lbs
  • Rated Impedance
    8 ohms
  • Power Rating
    3200 Watts
