The SM80M

“A supercharged SM LPM”

sm80m header image

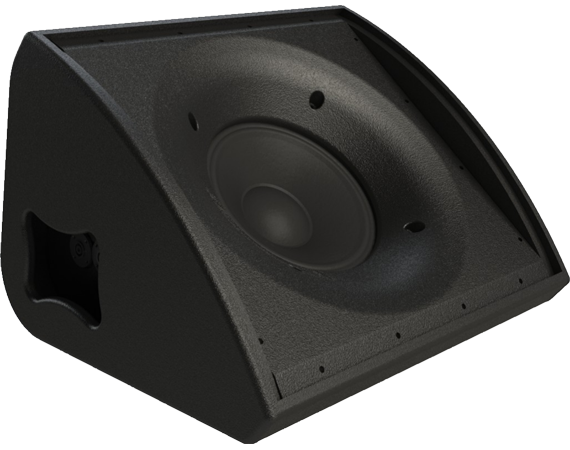

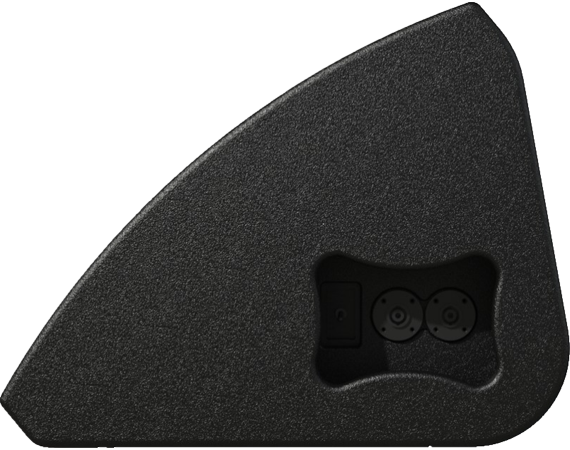

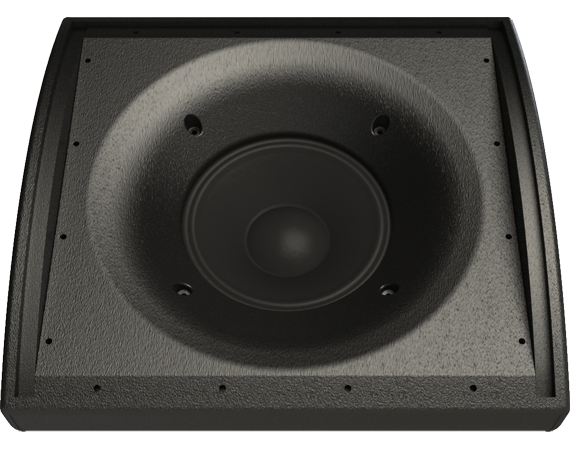

The SM80M is Danley's answer for those that are looking for the ultimate floor monitor. It is switchable between passive and biamped operation. The large horn provides significant forward directivity thus keeping the sound on the stage and not bleeding back into the first few rows of the audience. It has two angles of operation with dual input/output connections on each side-reducing cable clutter.

Get the Specifications

Download Spec Sheet

When you want to Rock


  • coverage Pattern
    80° conical
  • operating
    frequency range
    86Hz- 19KHz +/-3dB
    70Hz- 20KHz -10dB
  • continuous output
  • peak output
    134 dBSPL
  • sensitivity
    102 dBSPL
  • driver complement
    1-12”/1-1.4”HF coaxial
  • dimensions
    25.5”H x 24”W x 12.75”D
  • weight
    50 lbs.
  • Rated Impedance
    8 ohms
  • Power Rating
    1600 watts
