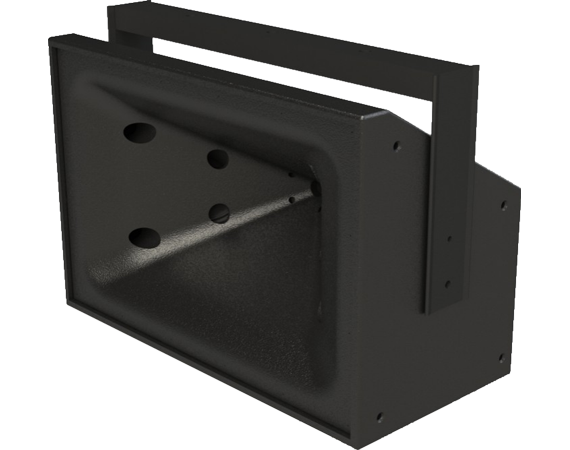

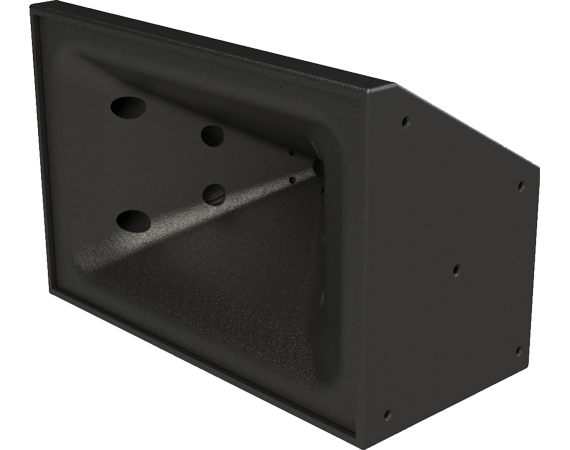

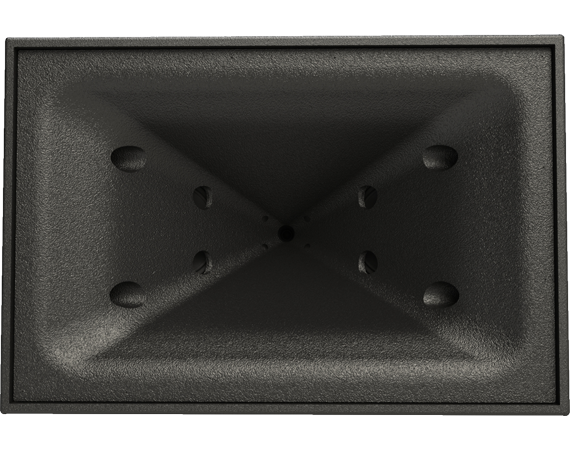

The SM96

90 by 60 coverage in a compact box

sm96 header image


Has the added benefit of truly modular array-ability

The SM96 combines great fidelity, low frequency pattern control and unrivaled magnitude/phase response into an ultra-compact enclosure. The SM96 is available for installation or for touring.

Compact and has great response!


  • coverage Pattern
    90˚ horizontal x 60˚ vertical
  • operating
    frequency range
    55 Hz - 24 kHz +/- 3dB
    42 Hz - 26 kHz - 10dB
  • continuous output
    124 dB SPL
  • peak output
    130 dB SPL
  • sensitivity
    98 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    two 8" Woofers
    one 5" Coaxial High Freq
  • dimensions
    31.5 x 21 x 15.5 inches
  • weight
  • Rated Impedance
    4 Ohms
  • Power Rating
    800 W continuous, 1600W program
