The J2-96

42 Drivers, One Fullrange Arrayable Horn

j2-96 header image

J2-96

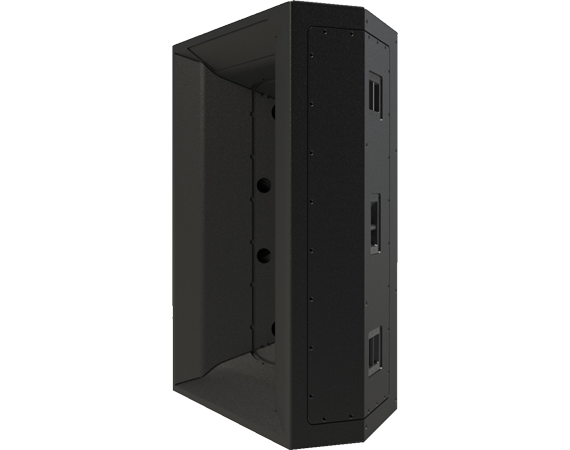

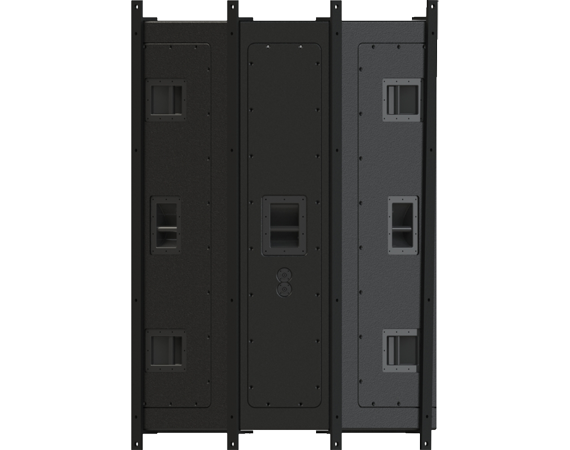

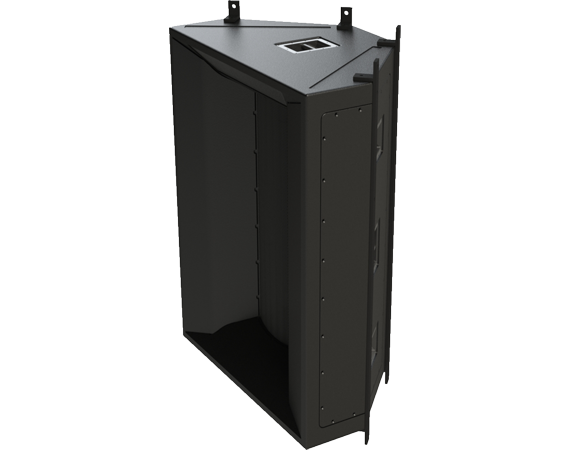

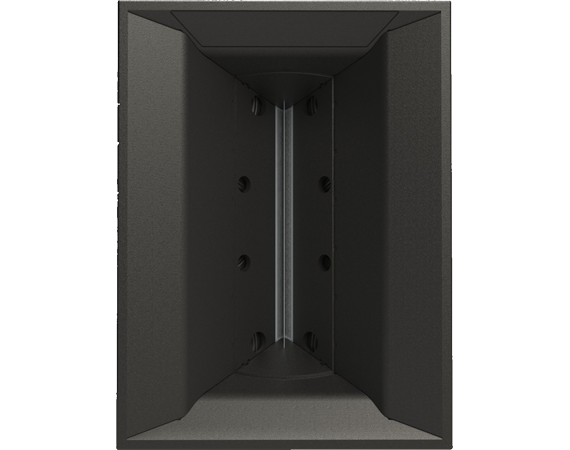

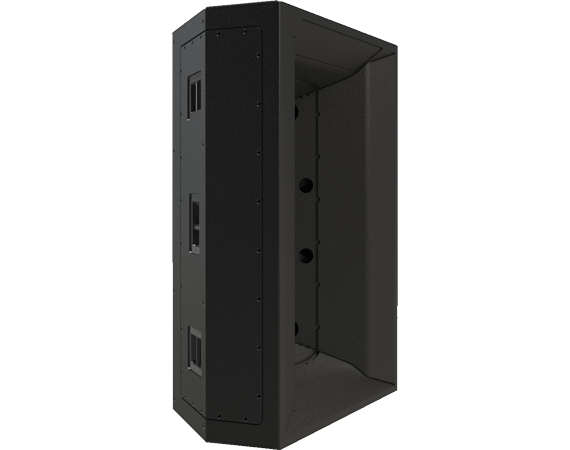

The J2-96: 42 drivers, 1 awesome unit!

Danley Sound Labs technology has another version of the Jericho horn called the J2-96. This impressive sound quality loudspeaker contains 42 drivers into one full range arrayable horn.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

42 Drivers, One Fullrange Arrayable Horn

Specifications

  • coverage Pattern
    90 by 60
  • operating
    frequency range
    37 Hz - 10 kHz -3 dB
    27 Hz - 15 kHz -10 dB
  • continuous output
    Band dependent, average 138 dB SPL
  • peak output
    Band Dependent, average 145 dB SPL
  • sensitivity
    Band Dependent , average 113 dB SPL
  • driver complement
    Low Freq six 18" woofers
    Mid Range twenty four 5" mids,
    High Freq Twelve 1" compression drivers
  • weight
    600 Lbs
  • Rated Impedance
    band dependent
    LF 3 ohms
    Mids 4 ohms
    High Freq. 4 ohms
