The SH50

Our flagship loudspeaker

sh50 header image

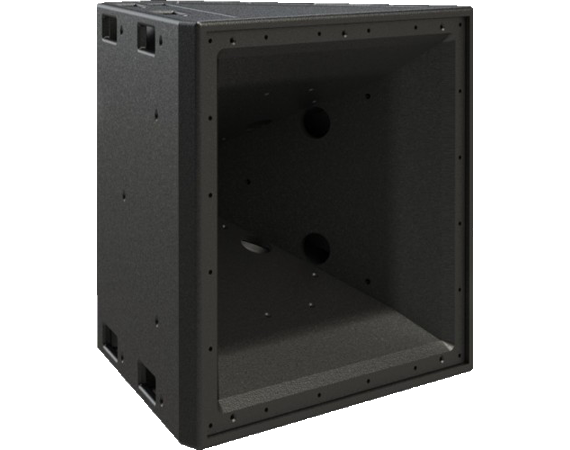

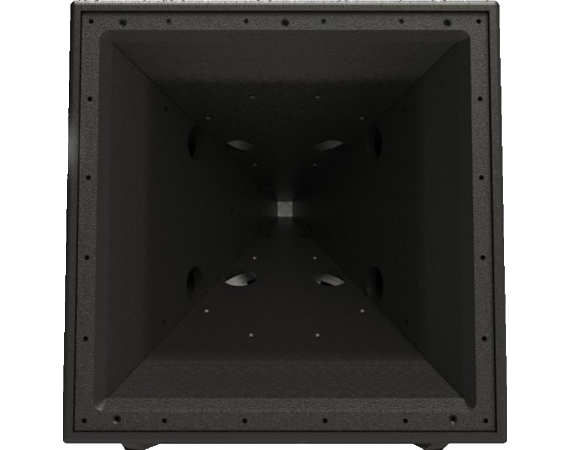

SH50

The SH50 provides great fidelity, low frequency pattern control and unrivaled magnitude/phase response in the coverage angle

The SH50 has the added benefit of truly modular array-ability, and delivers high SPL and low distortion sound reproduction. The SH50 standard model is available in powered or Cobramote models for easy installation, as well as passive versions, and the touring model features handles for simple portability.

The Flagship of the Synergy Horn Line

Specifications

  • coverage Pattern
    50˚ horizontal x 50˚ vertical
  • operating
    frequency range
    50 Hz - 18 kHz
    37 Hz -24 kHz -10 dB
  • continuous output
    127 dBSPL
  • peak output
    133 dB SPL
  • sensitivity
    100 dBSPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    two 12" woofers
    four 5" MR
    one 1" HF
  • dimensions
    28 x 28 x 25.5 inches
  • weight
    142 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1000W continuous, 2000W program, 4000W peak
