The SH95

The power of a SH50 in a smaller package

sh95 header image

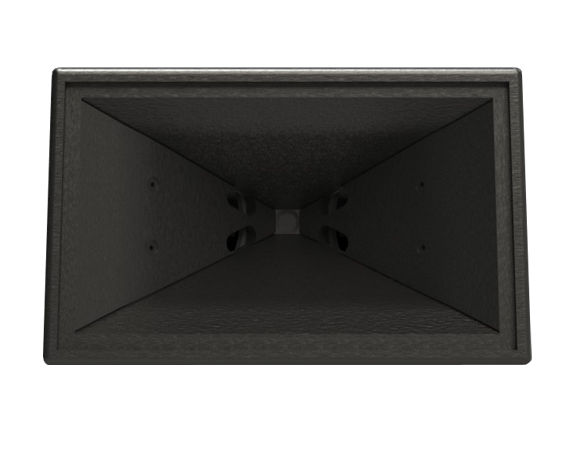

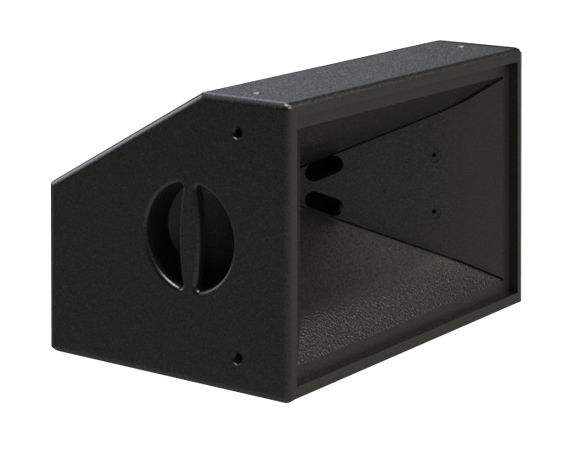

SH95

A combination of high fidelity with sensitivity in a compact enclosure

Perfect for down fill, front fill or delay applications, the SH95 can be used with subwoofers to create an amazing compact system that features the highly requested 95° x 55° coverage pattern. Available in both Touring and Install versions, the SH95 also features a pole cup that fits most tripods. Available in 4 or 16 ohm models.

A great down-fill or under-balcony speaker

Specifications

  • coverage Pattern
    95˚ horizontal x 55˚ vertical
  • operating
    frequency range
    91 Hz - 20 kHz +/-6dB
    55 Hz - 24 kHz -10dB
  • continuous output
    120 dB SPL
  • peak output
    126 dB SPL
  • sensitivity
    97dB 2.38 volts into rated Z at 1 meter, measured in free space
  • driver complement
    Two 8" woofers
    one 1"compression driver
  • dimensions
    24 x 14.5 x 15 inches
  • weight
    58lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    400W continuous 800W Program
