The BC412

The Hammer

bc412 header image

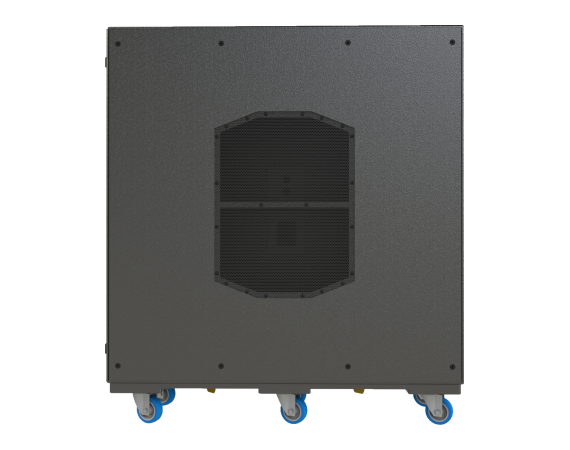

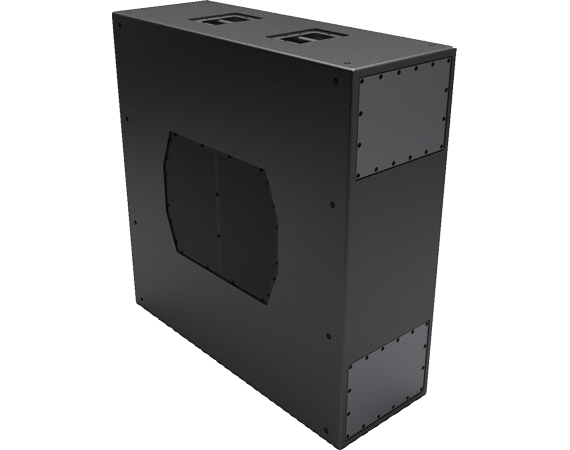

BC412

Boundary Compliant Sub with 4 12s

The BC412 is another unique subwoofer alignment from Danley Sound Labs. Using four 12" woofers combining into a single exit provides massive amounts of punch and extension out of a single cabinet. Due to the physical size of the BC design's center exit the boundary exhibits forward directivity which can be increased when used in stacking multiple enclosures.

Get the Specifications

Download Spec Sheet

Just what I needed! .... Thor

Specifications

  • operating
    frequency range
    44Hz-200Hz -3dB
    36Hz-200hz -10dB
  • continuous output
    142 dB SPL
  • peak output
    148 dB SPL
  • sensitivity
    119 dBSPL @ 125 Hz (Referenced to 2.83V @1M 1⁄2 space, measured as 28.3V @ 10M)
  • driver complement
    Four 12 inch Long Excursion
  • dimensions
    50" X 50" X 18"
  • weight
    277 lbs.
  • Rated Impedance
    2 ohms or 2 x 4 ohms
  • Power Rating
    4000 W continuous
