TH221

The TH221 - When you must have high efficiency and 20Hz performance

The TH221's exceptionally low bass response is also perfect for the demands of today's HD commercial theatre or a one-of-a-kind high-end home theatre. As one of the most powerful and largest subwoofers on the market, the TH221 is bold, but accurately stated. There is no equivalent!

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

There is no equal for the Cine-Monster !

Specifications

operating
frequency range
22 Hz - 180 Hz - 3 dB
18.5 Hz – 200 Hz -10dB
continuous output
138 dB SPL
peak output
144 dB SPL
sensitivity
109 dB Spl (2.83 Volts into rated Z, at 1 meter), measured in half space
driver complement

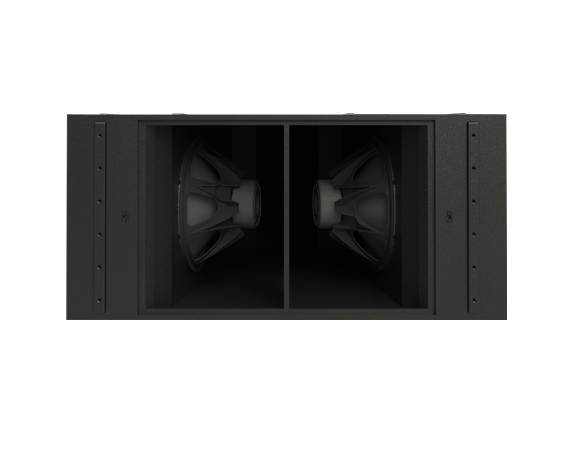

two, long excursion, 21" woofers
dimensions
60 x 60 x 28 inches
weight
480 lbs
Rated Impedance
switchable
a single 2 ohm load
or
two 4 ohm loads
Power Rating
3000 W continuous 6000 W program
