The TH Mini

th mini header image

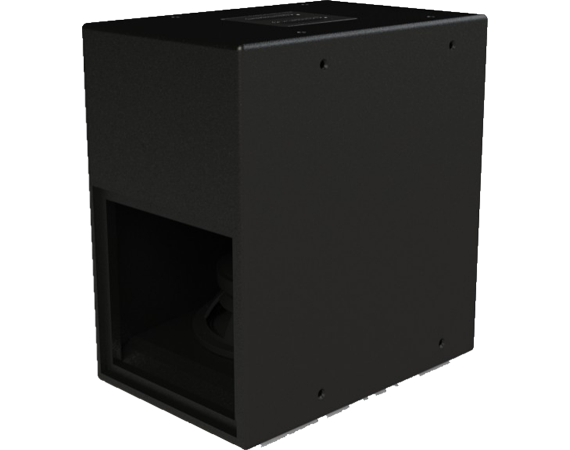

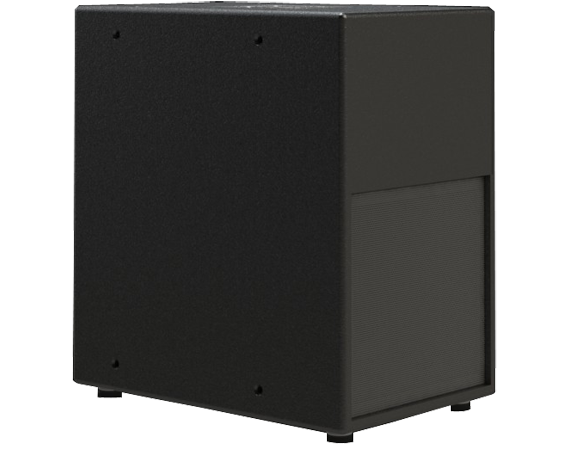

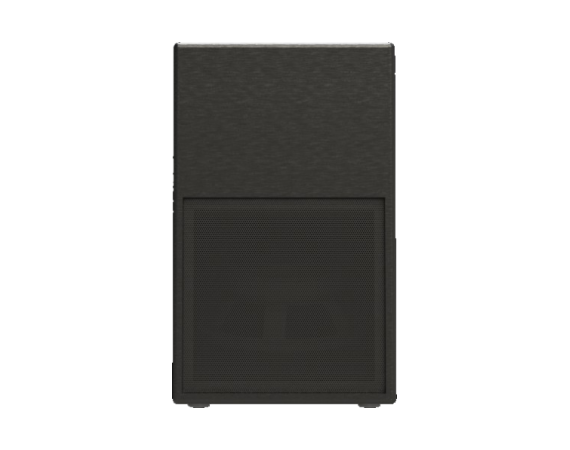

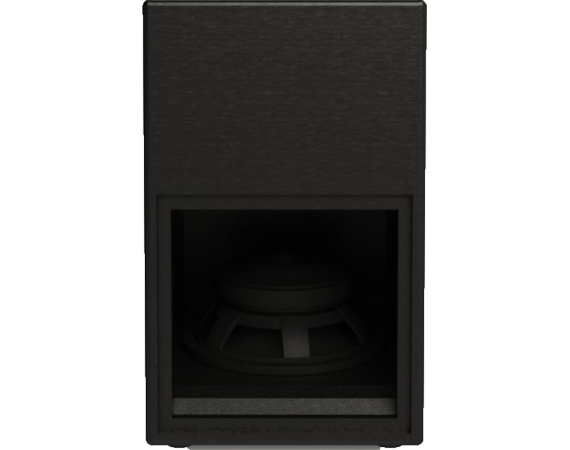

TH Mini

The THmini was designed with the small band or weekend warrior in mind who often must setup and tear down on their own with nothing more than a hand truck. The THmini comes in two different models, touring and installed.

Much more than you would expect from such a small box

Specifications

  • operating
    frequency range
    48 Hz - 200 Hz - 3 dB
    41 Hz -10dB
  • continuous output
    129 dB SPL
  • peak output
    135 dB SPL
  • sensitivity
    101 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space
  • driver complement
    one 12" long excursion woofer
  • dimensions
    24 x 15 x 24 inches
  • weight
    76 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    700 W continuous, 1400 W program

Tapped Horn Series

The most powerful family of horn loaded subwoofers
