The TH115

The Workhorse of the TH line

th115 header image

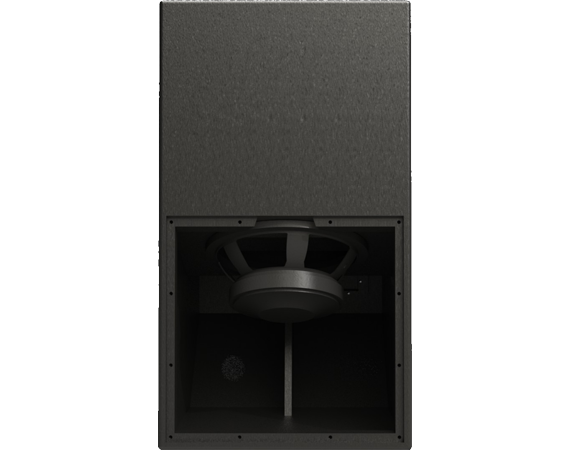

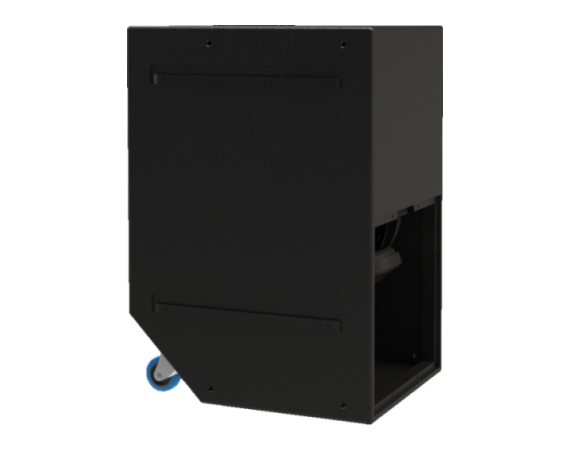

TH115

The TH115 is the ideal subwoofer for concert and touring professionals who need a massive punch without the weight

The TH115 is lightweight, made for portability and the interlocking skids allow the boxes to be stacked into multiples which produce stunning output and low frequency directivity. The TH115 can also be installed permanently using a variety of fly points available on the install version.

Over 130 dB at 40 Hz from a 152 lb box!

Specifications

  • operating
    frequency range
    38 Hz - 200 Hz - 3 dB
    33 Hz - 280 Hz - 10 dB
  • continuous output
    133 dB SPL
  • peak output
    139 dB SPL
  • sensitivity
    106 dB SPL (2.83 Volts into rated Z, at 1 meter), measured in half space
  • driver complement
    one 15 inch long excursion woofer
  • dimensions
    40 X 22.5 X 28.5 inches
  • weight
    152 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1000W continuous, 2000 W program
