The SM60F

Full range performance in a compact box

sm60f header image

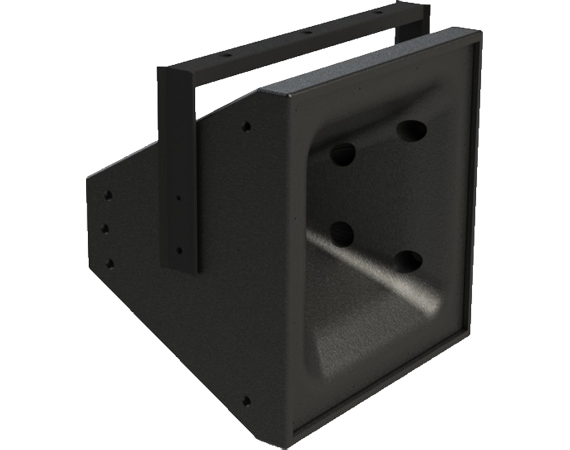

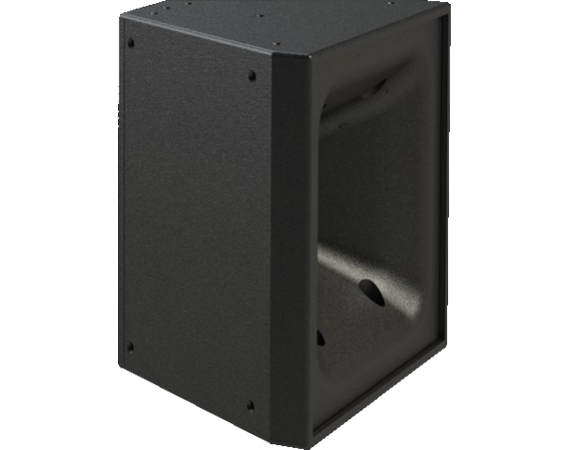

SM60F

The SM60F has the added benefit of truly modular array-ability

The SM60F combines great fidelity, low frequency pattern control and unrivaled magnitude/phase response into an ultra-compact enclosure. Available in both touring and install versions.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

Full range performance in a compact box

Specifications

  • coverage Pattern
    60˚ horizontal x 60˚ vertical
  • operating
    frequency range
    66 Hz - 24 kHz +/- 4dB
    52 Hz - 26 kHz - 10dB
  • continuous output
    125 dB SPL
  • peak output
    131 dB SPL
  • sensitivity
    99 dB (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    two 8" woofers
    one 5" Coaxial
  • dimensions
    20.6 x 20.6 x 16.3 inches
  • weight
    50lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    800 W continuous, 1600 W program
